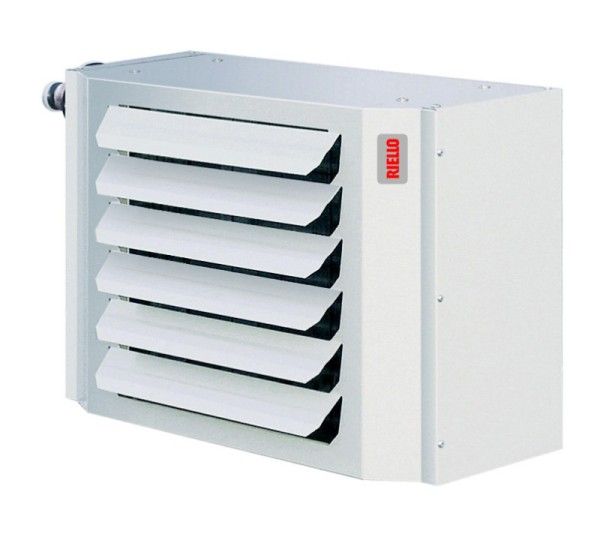

NUOVO ACU-NUOVO ACU F
NUOVO ACU and NUOVO ACU F are water air-heaters designed for the heating and cooling of small and medium-sized areas, such as warehouses, storehouses, laboratories, sports centres.

The NUOVO ACU consists of 3-ranks coils for applications with low temperature warm water. The NUOVO ACU F is specifically designed for cooling and consists of 3-ranks copper coils with condensate trap.

– Low noise level

– Reduced dimensions

– Coil with coupling provided with vent

– Reversible hydraulic connections

– Possibility of ceiling installation with specific accessory kit (only heating version, not for F versions)

– Available as single-phase (16 models) and three-phase (1 model)

– 10 models

– Wide range of accessories

– The range consists of 4 models for cooling with 3 row coils with output from 19,6 to 42,2 kW.

– Range consists of:

7 models with 3 row coils with output from 17,3 to 63 kW

4 models for cooling with 3 row coils with output from 19,6 to 42,2 kWa.

Heating and cooling versions
Helicoidal fan
